ProCo R2DU Rack Modifications

Two Rats, One Rack

My buddy James inspired me to modify his R2DU Rat Rack from ProCo into a double-rat FKR with mods.

ProCo R2DU Rack Modifications

Cover off, testing some paths

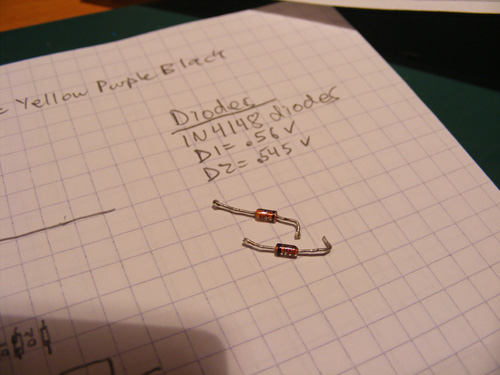

Measuring the existing diodes

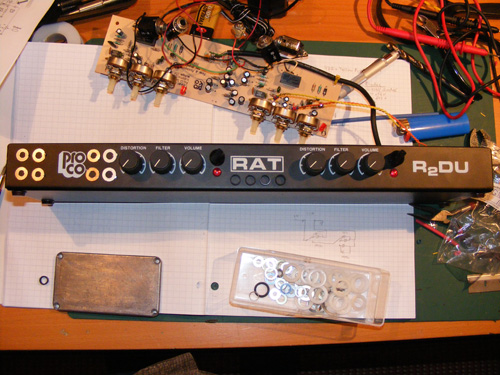

Figuring out the front-panel layout

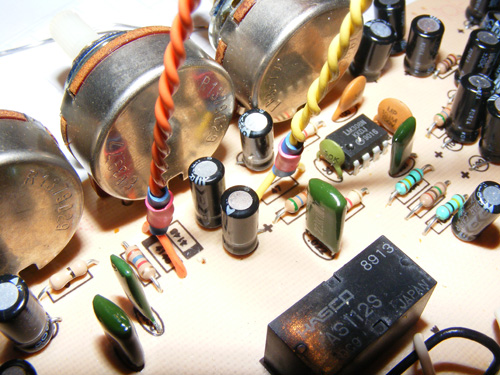

Stock diodes removed and jumper wires patched in for connection to multi-diode switches

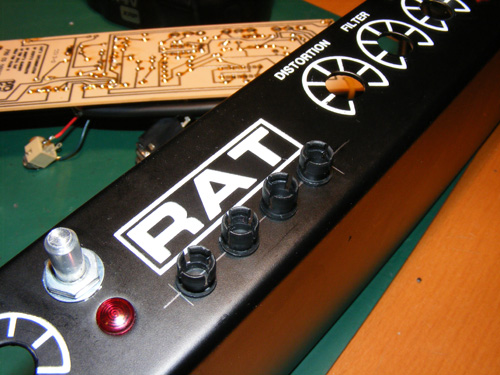

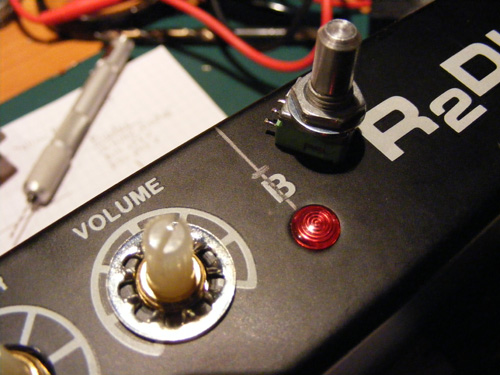

Marking for drilling



The clipping LED diodes (ala Turbo Rat mode) will be exposed for fun

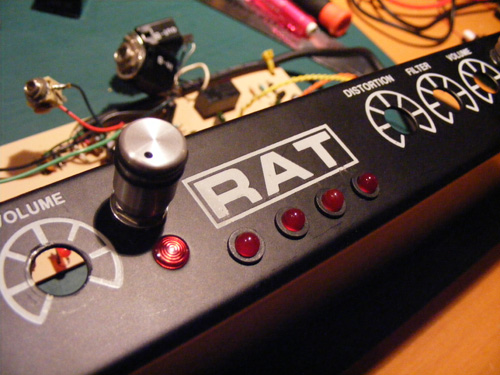

LEDs are in

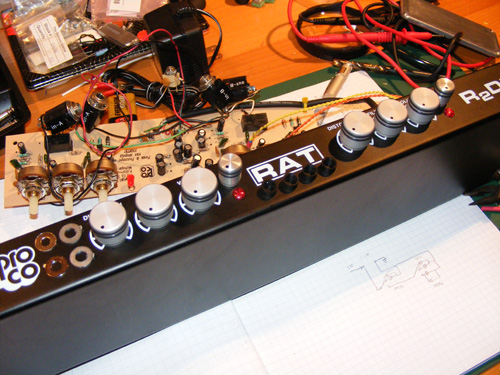

New knobs

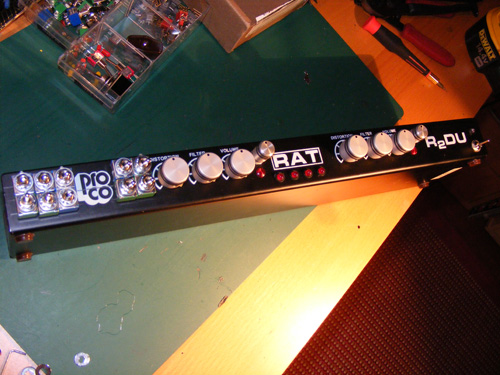

Figuiring out the position for the switches

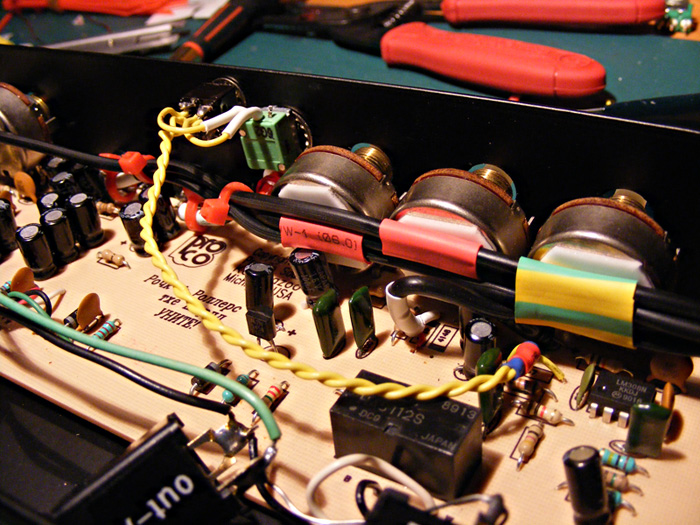

Inside wiring to the switches



Heat-shrink tubing and double-stick foam tape to make it neat

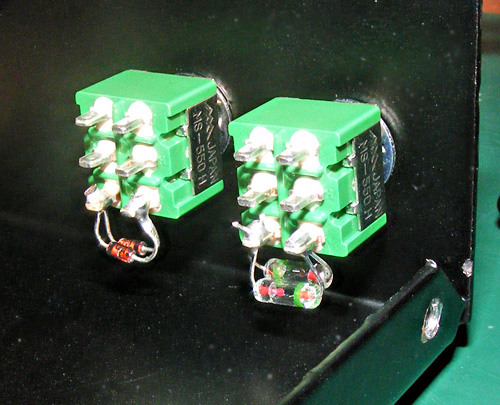

Diode clipping options hard-soldered to switches

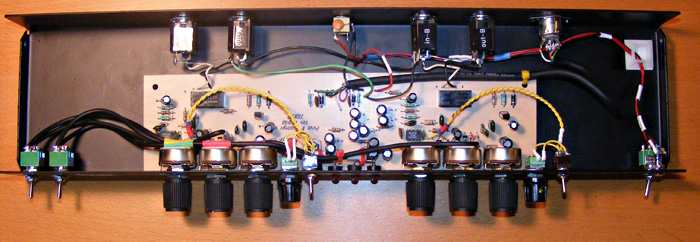

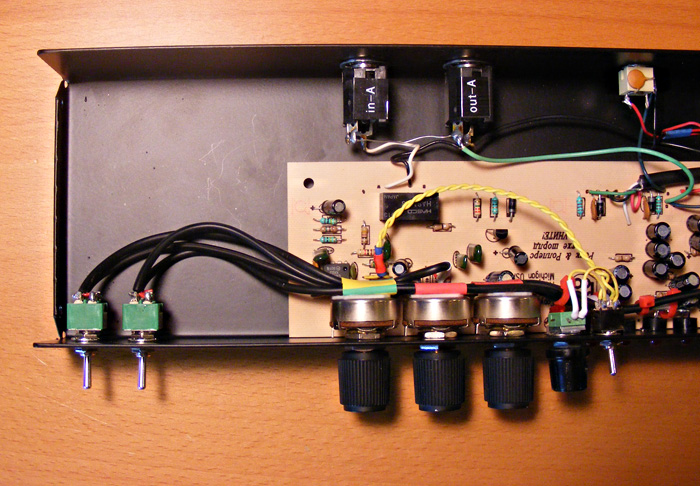

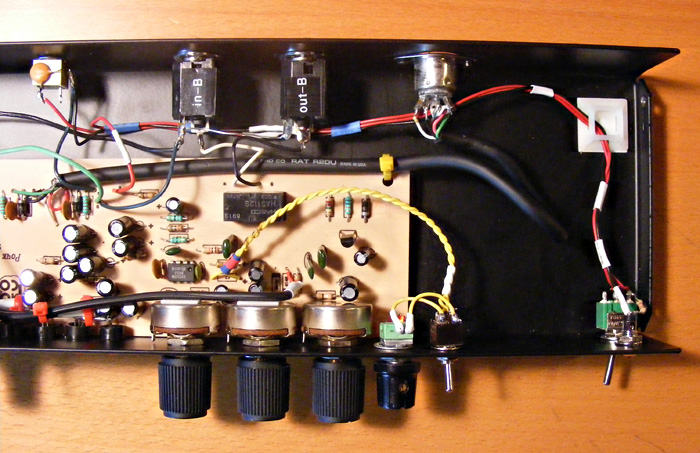

Inside wiring done!

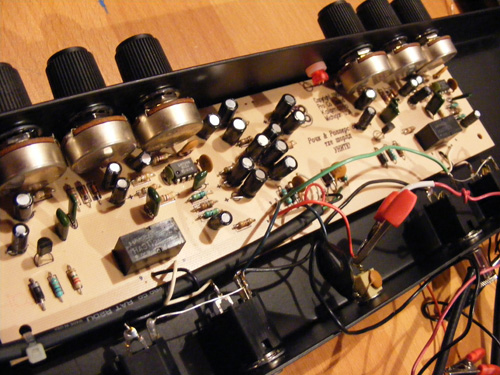

More guts

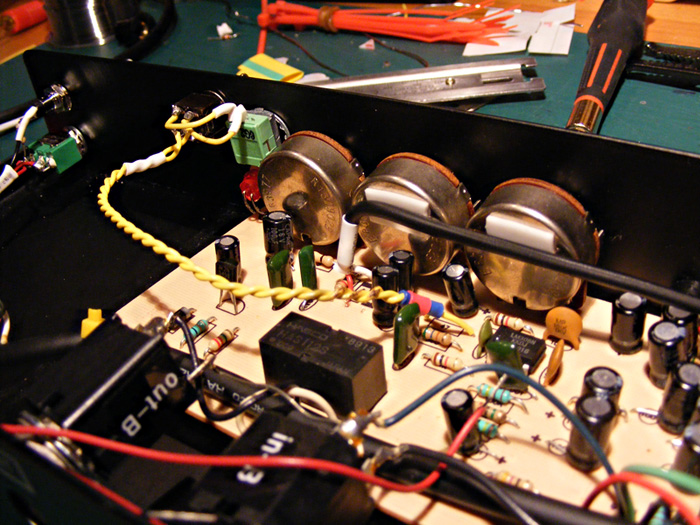

More guts part II

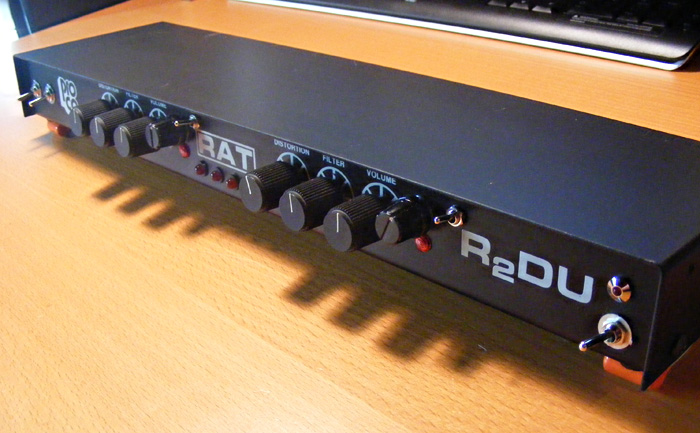

Finished project



Ready for the rack
